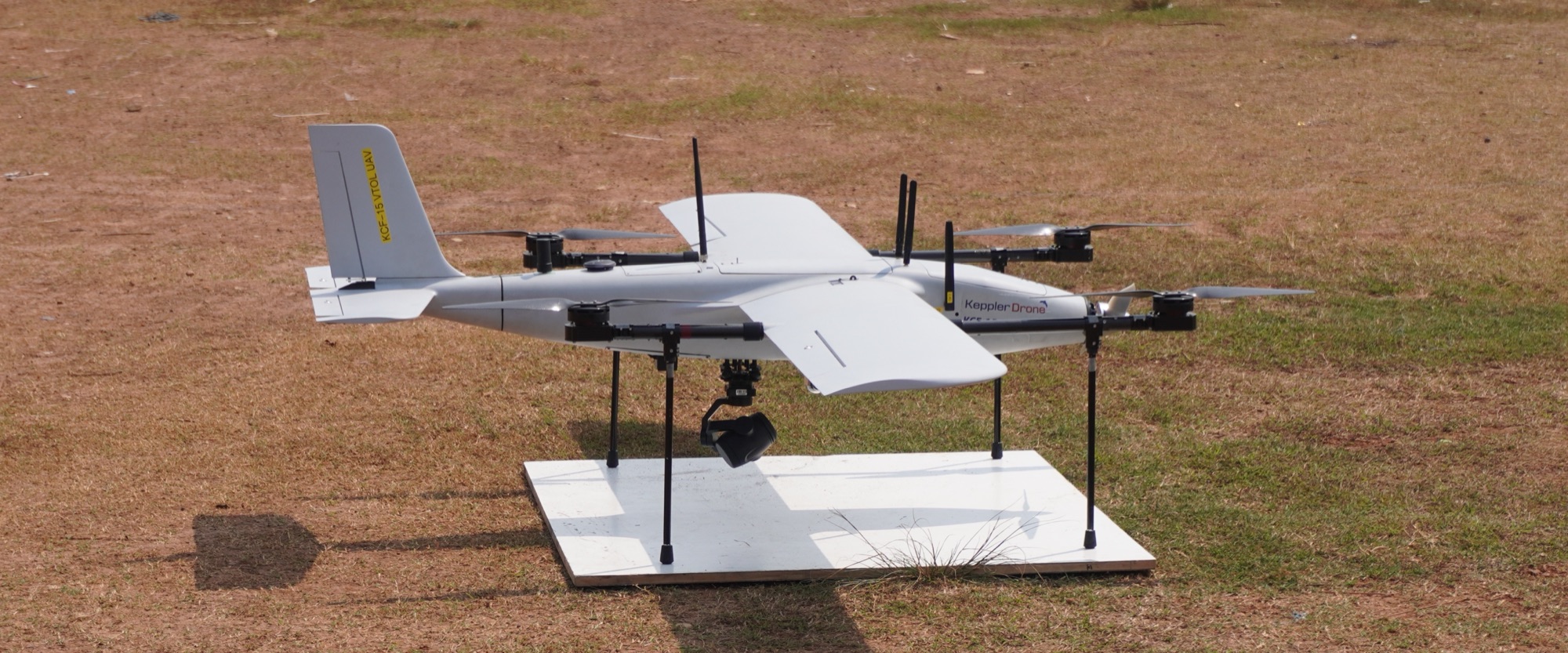

VTOL UAV · Fixed Wing
KCF-15
A long range, high speed VTOL fixed wing drone for surveillance, built from full carbon fiber composite.
Overview

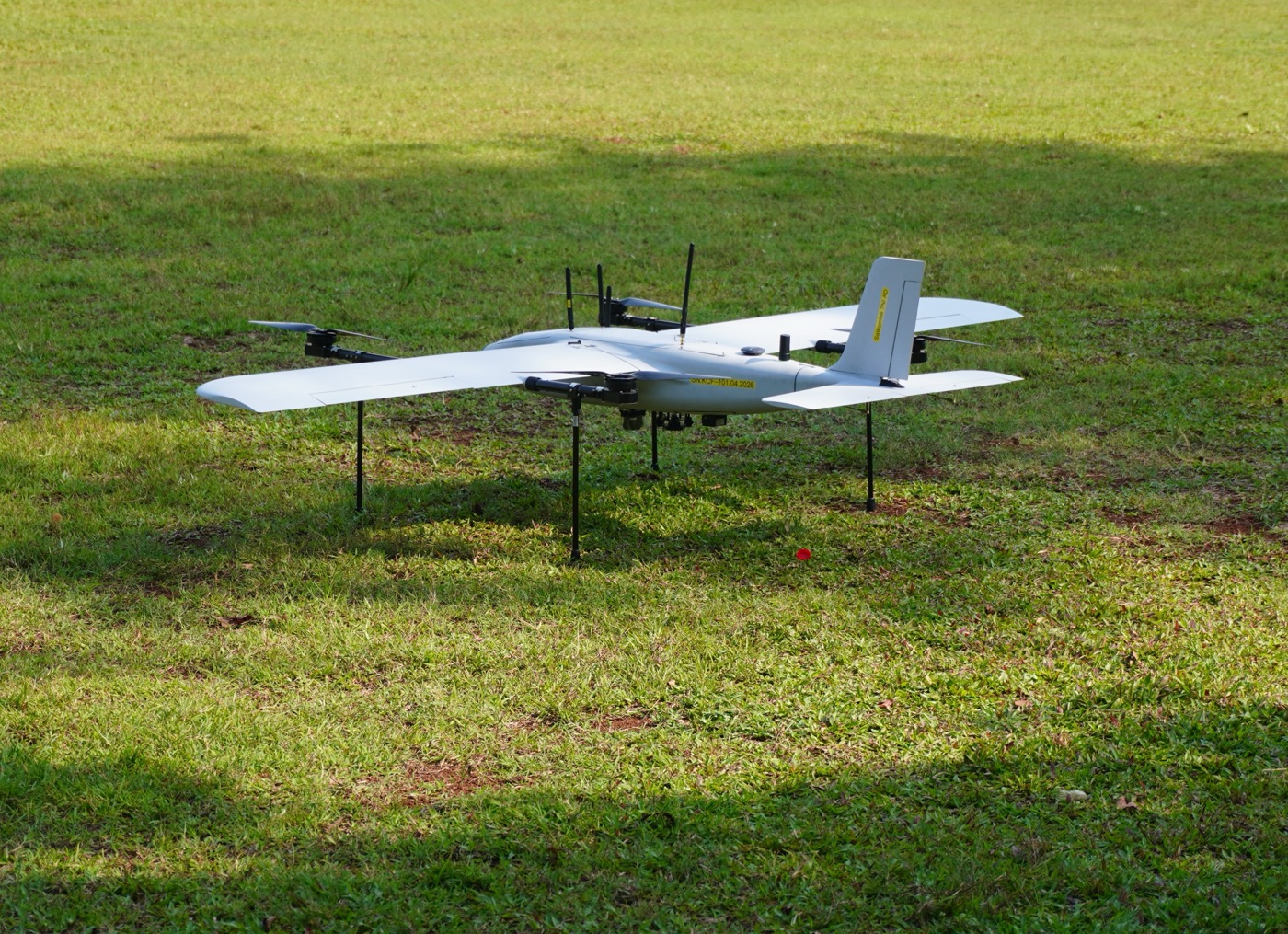

Takes off like a copter, flies like a plane
KCF-15 lifts off and lands vertically, so it needs no runway. Once airborne, it cruises on its wings for long range at high speed.
Its 4+1 motor configuration (four lift motors and one pusher) makes it more reliable, and the full carbon fiber composite body keeps it light at 14.5 kg MTOW.
- Recommended 2–2.5 hours or under 150 km per flight
- RGB camera with 30× optical, 180× total zoom
- Video and telemetry range of 5–15 km
Key features
Built for long range surveillance
VTOL fixed wing

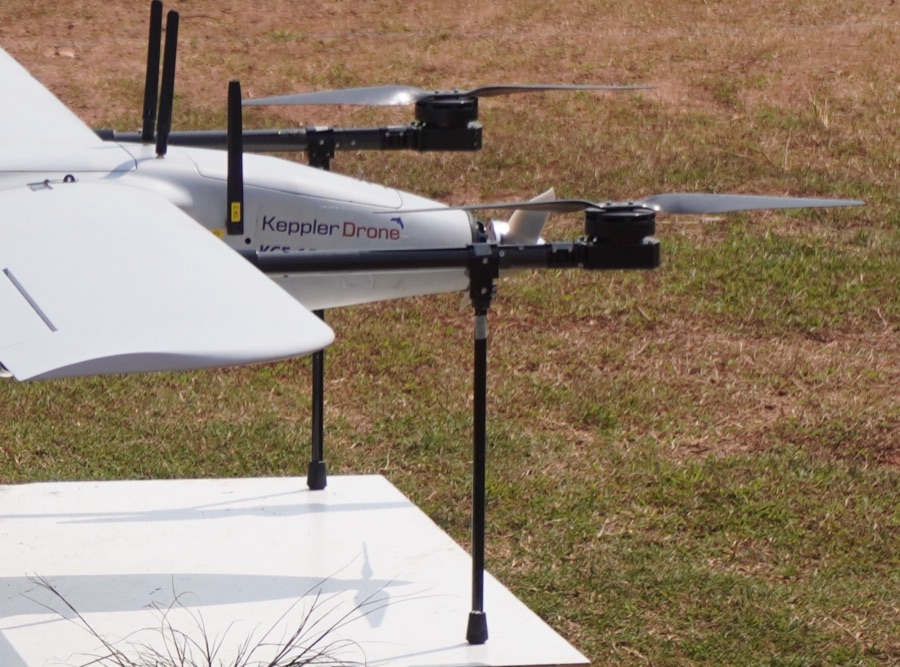

Vertical take-off and landing with a 4+1 motor and propeller configuration for more reliability.
Long endurance
Up to 3 hours and 180 km without payload. 2–2.5 hours is recommended for safety and battery life.
High speed cruise
Recommended cruise speed of 15–18 m/s, with a top speed of 90 km/h.

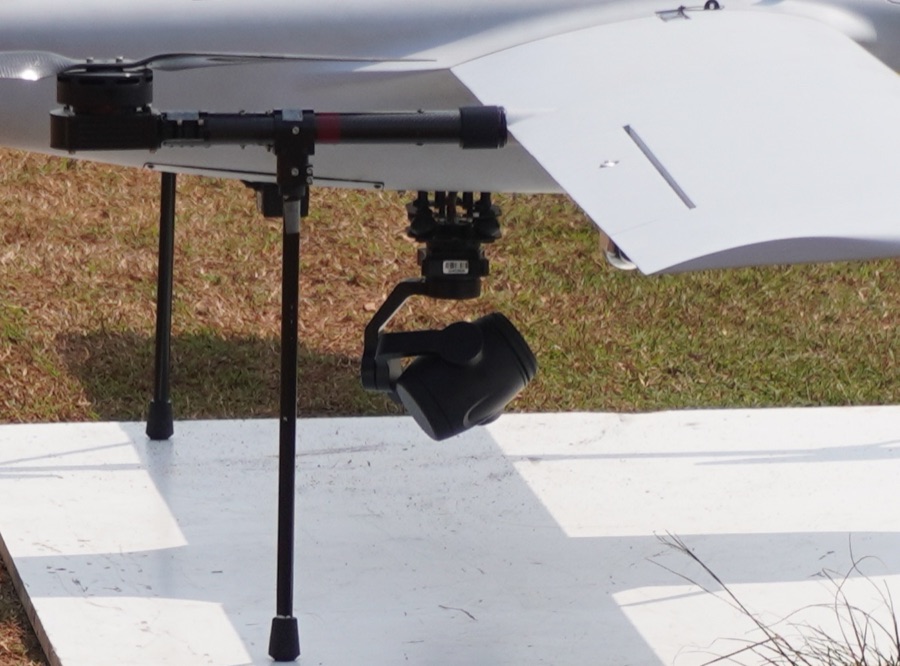

30× optical zoom camera
RGB optical zoom 30×, digital 6×, total 180×. The camera can be upgraded to suit your needs.
Full carbon fiber body
Carbon fiber composite airframe with a 2650 mm wingspan and 1450 mm fuselage.
Wind tolerant
Handles winds up to 14 m/s while cruising and under 10 m/s during take-off and landing.
Triple redundant flight controller
Industrial grade autopilot with triple redundant IMU and dual redundant high precision GNSS.
Long range link
Video, telemetry and RC over 2.4 GHz, 5.8 GHz, 915 MHz or 433 MHz.
Up close
Details that matter in the air
Specifications
VTOL KCF-15
| General | |
|---|---|
| Description | Long range high speed VTOL fixed wing drone that can do vertical take off and vertical landing. Motor and propeller configuration: 4 + 1 (more reliable) |
| Wingspan | 2650 mm (fuselage length 1450 mm) |
| Max. Take Off Weight (MTOW) | 14,500 g |
| Frame & body | Full carbon fiber composite |
| Motor | Brushless 4+1 motor |
| Propeller | 4+1 |
| Performance | |
| Max flight time5 | 3 hours max. with flying range max. 180 km (no payload, depending on flying condition, wind, weather, etc.) |
| Recommended flight time5 | 2–2.5 hours or less than 150 km range, for safety and battery life |
| Cruise speed | 15–18 m/s (recommended speed) |
| Max. speed4 | 90 km/h |
| Payload2 | Max. payload weight up to 2000 g |
| Wind tolerance3 | Wind resistance: 14 m/s or 50.4 km/h during cruising During take off / landing: less than 10 m/s |
| Video Tx & telemetry range1 | Standard: 5–15 km (LOS, no obstacle, no interference, depending on field condition) |
| Battery | Lithium-ion / semi solid state technology (1 set) |
| Avionics & Camera | |
| Autopilot | Industrial grade flight controller with triple redundant IMU |
| Sensor | 3 (triple redundant) IMU, accelerometer, gyrometer, dual barometer, compass, GNSS, telemetry radio control |
| VTX / telemetry & RC | 2.4 GHz / 5.8 GHz / 915 MHz / 433 MHz |
| GNSS system | High precision GNSS, dual redundant |
| Camera | RGB optical zoom 30×, digital 6×, total 180× zoom. Camera can be upgraded later, according to user need. |
| Mission planning | Mission Planner / QGroundControl GCS (free license) |
| Package & Support | |
| Accessory | Standard accessory (RC, charger, GCS software) |
| Training | To be announced |
| Warranty6 | 12 bulan (free service) sesuai dengan ketentuan pabrik |
| Instruction manual | Bahasa Indonesia |
Penjelasan
- Range (jarak) capaian signal RC, telemetri, video itu bergantung pada kondisi lapangan, interferensi gelombang, dll. Jadi jarak itu tidak dijamin dapat tercapai.
- Maksimum payload di sini adalah kemampuan drone membawa beban tertentu, misal kamera, dll. Apabila diberikan beban maksimum (2 kg), maka jarak tempuh (range) drone akan jauh lebih pendek.
- Rekomendasi terbang: kecepatan angin di bawah 5 km/jam.
- Pada maksimum speed, jarak terbang akan menjadi lebih singkat.
- Maksimum flight time dan rekomendasi flight time adalah pada saat tidak ada payload apa pun selain baterai dan kondisi angin tenang, yaitu pada angka 0–1 skala Beaufort (kecepatan angin 0,3–1,5 m/s).
- Garansi ketentuan pabrik adalah untuk jasa perbaikan saja, di luar biaya/harga spare parts. Garansi hanya berlaku untuk kerusakan karena cacat produk dari pabrik, bukan kerusakan akibat pemakaian ataupun kecelakaan terbang. Ketentuan lengkap ada di Syarat & Ketentuan Garansi.
